With dramatic improvement of accuracy & repeatability by S/W & H/W renovation, the MS-11 can precisely measure and
inspect solder paste on Mini-LED chips as small as 0201mm, with a designated height of 30㎛.

MIRTEC has implemented a next-generation vision system featuring 4㎛/6㎛ high-resolution lenses for greater precision and stability in inspection.
Additionally, the CoaXPress interface enables high-speed inspection, while the 25M high-resolution camera provides a large field of view (FOV)
for enhanced performance.

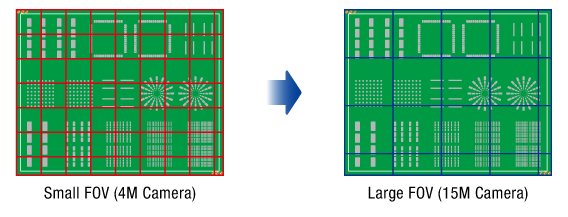

With a large field of view (FOV), a larger and clearer image can be captured in a single shot, reducing the number of images required.
This enables faster and more accurate inspections.

Many 3D SPI systems on the market use conventional lenses, which cause image distortion.
MIRTEC doesn't.

All of our 3D SPI systems are equipped with telecentric lenses, eliminating image errors caused by perspective distortion
and ensuring highly precise 3D inspections.

The degree of warpage or twisting in a PCB can be calculated and compensated during inspection.
Additionally, the warpage itself can be evaluated to determine whether the PCB meets quality standards.

MIRTEC's SRS (Solder Repair System) automatically repairs defective pads identified as having insufficient solder or no solder after inspection,
using a solder dispenser integrated into the optical system.
