18M High Resolution Camera

MIRTEC has implemented a next-generation vision system featuring 7.3µm high-resolution lenses for greater precision and stability in inspection.
Additionally, the 18M high-resolution camera provides a large field of view (FOV) for enhanced performance.

8 Phase Coaxial Color Light

All MIRTEC AOIs are equipped with an 8 Phase Coaxial Color Lighting System, including coaxial lighting, which consists of coaxial white, primary vertical white, secondary vertical white, horizontal white, blue, red, green, and yellow.
This ensures optimal inspection conditions at all times, regardless of the PCB or the inspection object's color and material.

AI Powred Full-auto Teaching

MIRTEC’s Auto-Matching function uses AI based Deep Learning in order to maximize the efficiency and accuracy of the AOI programming process.
When this function is used, work time can be reduced by 90% compared to traditional manual teaching and 50% compared to automatic teaching without deep learning.
Best of all, every process is automated with Teaching Wizard, so even new operators are able to maintain the teaching quality of about 85% of the highest skilled operators.

18M Side Camera (Option)

Four high-resolution side cameras enable side-view OCR inspection and solder inspection of J-leads, coils, and QFNs, which are challenging to inspect from a top-down perspective.

OCR Inspection for Tall Parts (Option)

By installing Z-axis mechanism on the optical system, characters on the upper surface of tall parts can be recognized and inspected.

Double side PCB inspection (Flipper Option)

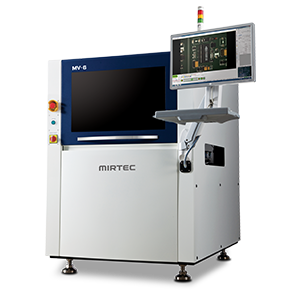

MV-6 OMNI can be equipped with an internal flipper for double-sided PCB inspection. This allows both the top and bottom of a PCB to be inspected without the need for external equipment.
